Overview

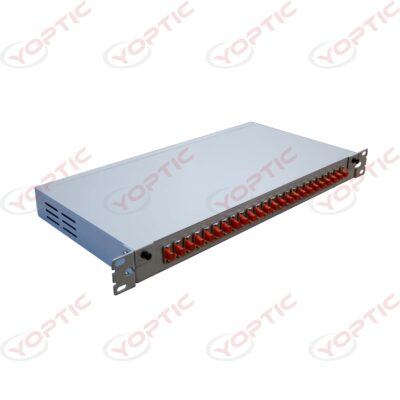

YODF-U Type4 Optical Distribution Frame Unit is also known as Patch Panel, it has optical cable fixing and protection function, optical cable final connection function, wiring function, and optical cable core and tail fiber protection function. Create a comprehensive distribution framework. The equipment is flexible in configuration, easy to install and apply, easy to maintain, easy to manage. It is the optical fiber communication cable network terminal, or trunk point, to achieve fiber line, fiber hopping cable welding and access essential equipment. Users can choose the number of units or flanges according to the actual demand.
Specifications
| Items | Parameter |
| Maximum Fiber Capacity | 12~144 Ports |
| Access | Front and rear |
| Mounting Type | Rack-mounted |
| Material | Cold rolled steel |
| Door | 1 door at front |
| Dimension (H*W*D) | 45*485*350(1U) 12/24 Ports |
| Endurance Life | More than 1000 times |
| Working Environment | Indoor |
| Working Temperature | -5~40℃ |
| Storage Temperature | -25~55℃ |
| Relative Tumidity | ≤85%(At 30℃) |
| Air Pressure | 70~106KPa |
| Insulation Resistance | >1000MΩ/500VDC |
| Proof Voltage | 3000vDC/1min No breakdown, no flashover |
| Color | Gray Default RAL 7035 |
Configuration
| Items | Parameter |
| Splice & Distribution Module | No |
| Splice Sleeve | ≥12 PCS |
| Fiber Protection Tube | ≥1m |
| Plastic Cable Tie(L*W) | 120*3mm*≥4 PCS |
| Screw | 4 PCS |
| Adapter | SC/FC/LC |
| Patch Cord | Optional |
| Pigtail | Optional |

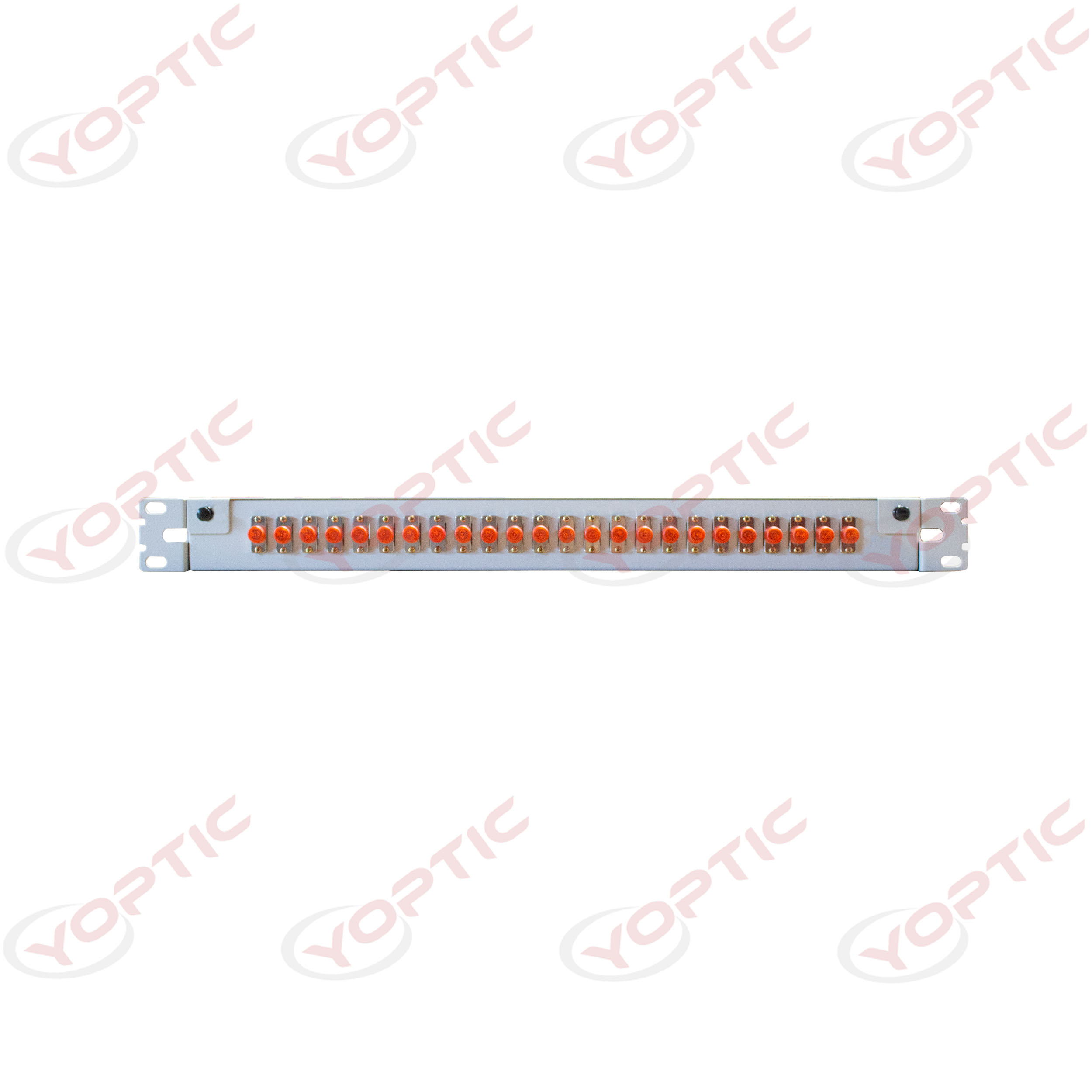

Other Perspectives
