YODF-U Type4b Optical Distribution Frame Unit
Overview

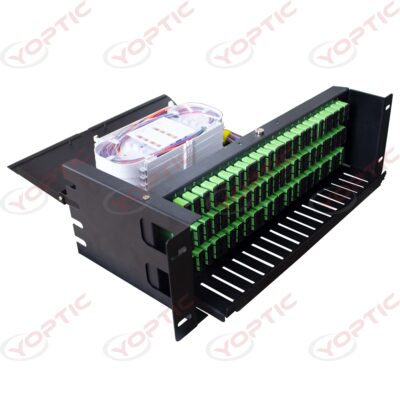

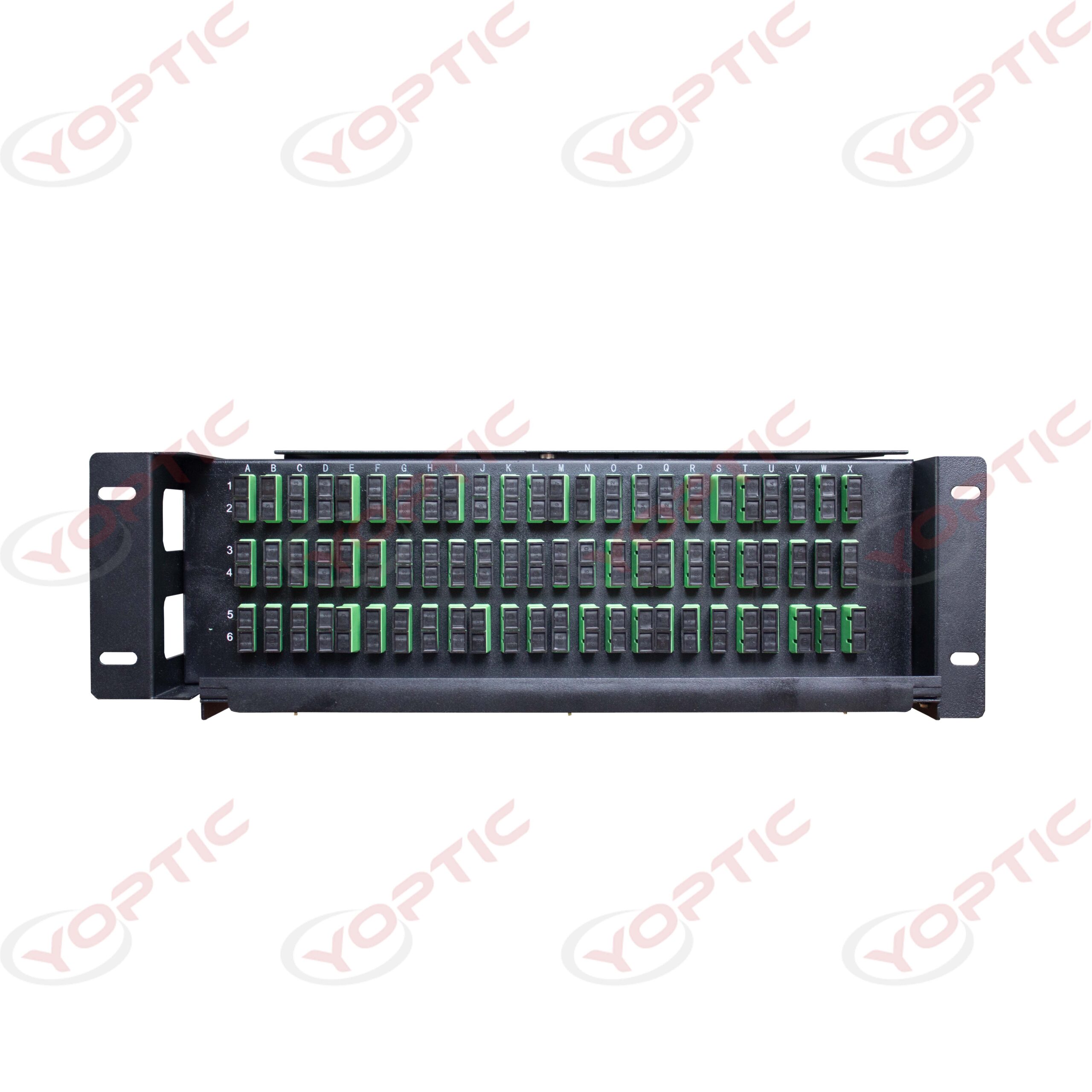

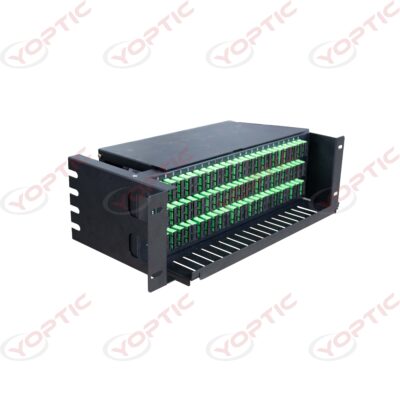

The YODF-U Type 4b Optical Distribution Frame Unit, also known as a Fiber Patch Panel, provides functions including cable fixation and protection, fiber termination connection, cabling, and protection of fiber cores and pigtails, enabling the construction of a complete distribution architecture. Featuring a flip-top design, this unit offers flexible configuration, simple installation and operation, and convenient maintenance and management. It serves as a terminal or backbone node in fiber-optic communication networks, playing a key role in fiber line connections, jumper splicing, and access. Users can select the number of units or flange specifications—such as SC, FC, or LC—according to actual requirements.
Specifications
| Items | Parameter |
| Maximum Fiber Capacity | 144 Ports |
| Mounting Type | Rack mounting |
| Material | Cold rolled steel |
| Dimension (H*W*D) | 148*482*229mm 24/48/96/144 Ports |
| Endurance Life | More than 1000 times |
| Working Environment | Indoor |
| Working Temperature | -5~40℃ |
| Storage Temperature | -25~55℃ |
| Relative Tumidity | ≤85%(At 30℃) |
| Air Pressure | 70~106KPa |
| Insulation Resistance | >1000MΩ/500VDC |
| Proof Voltage | 3000VDC/1min No breakdown, no flashover |
| Color | Black |
Configuration
| Items | Parameter |
| Splice Sleeve | ≥24 PCS |
| Plastic Cable Tie(L*W) | ≥100*3mm*10 PCS |
| Fiber Protection Tube | ≥2m |
| Splice Tray | 24 Cores |
| Adapter | FC/SC/LC |
| Bayonet nut | M6*4 PCS |
| Worm Gear Pipe Clamp | φ10-16mm*2 PCS |
