YODF-A Optical Distribution Frame

Fiber Distribution Frame

Features

· Modular components

· Independent wiring channels for easy maintenance

· Standard 19-inch rack installation

· Cables can be introduced from the top and bottom of the rack

· The rack size can be customized according to actual needs

Category:

Overview

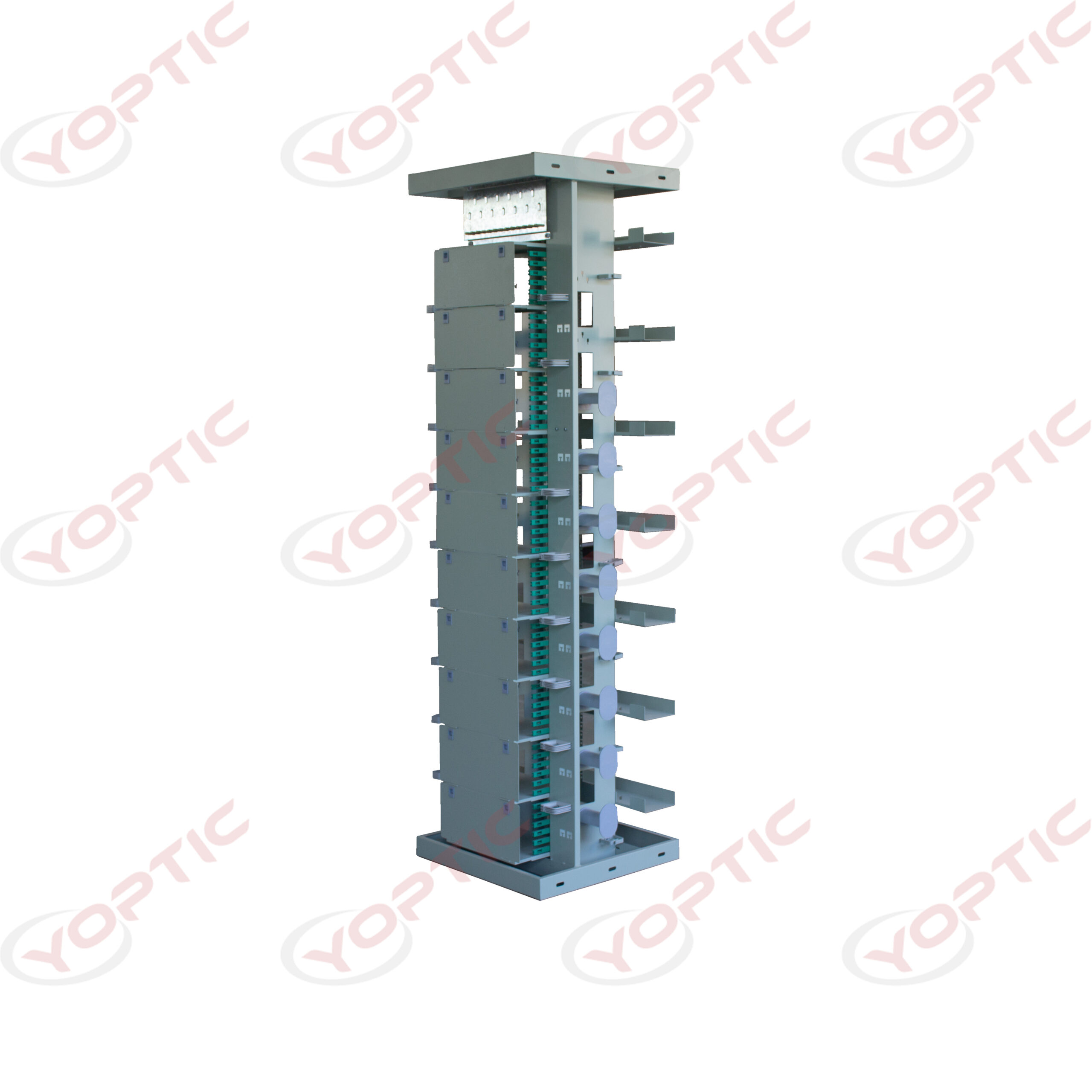

YODF-A Optical Distribution Frame, also known as Fiber Distribution Frame, is mainly used for the terminal and distribution of the main optical cable in the optical fiber communication system. This equipment can achieve the fixed, stripping, grounding protection of optical cable, as well as a variety of optical fiber welding, jump, redundant fiber coiling, reasonable layout, wiring scheduling and other functions, is the transmission medium and transmission equipment between the supporting equipment. It is suitable for small and medium-sized distribution systems from fiber to cell, fiber to building, remote module and wireless base station.

Specifications

ItemsParameter
Maximum Fiber Capacity720 Ports
Installed Capacity42U
AccessUp and down
Mounting TypeGround-mounted
MaterialCold rolled steel
Protection ClassIP65
Door2 Doors at front
Dimension (H*W*D)2200*840*300mm
Endurance LifeMore than 1000 times
Working EnvironmentIndoor
Working Temperature-5℃~40℃
Relative Humidity≤85%(At 30℃)
Air Pressure70~106Kpa
Insertion Loss≤0.2 dB
Return LossPC≥40 dB

UPC≥50 dB

APC≥60 dB

Insulation Resistance>2*104MΩ/500VDC
Proof Voltag≥3000VDC/1min No breakdown, no flashover
ColorGray Default RAL 7035


Configuration

ItemsParameter
AdapterOptional
Patch CordOptional
PigtailOptional
