Overview
YODF-B Optical Distribution Frame, also known as Fiber Optic Distribution Frame, is mainly used for the terminal and distribution of the main optical cable in the optical fiber communication system. This equipment can achieve the fixed, stripping, grounding protection of optical cable, as well as a variety of optical fiber welding, jump, redundant fiber coiling, reasonable layout, wiring scheduling and other functions, is the transmission medium and transmission equipment between the supporting equipment. It is suitable for small and medium-sized distribution systems from fiber to cell, fiber to building, remote module and wireless base station.
Specifications
| Items | Parameter |
| Maximum Fiber Capacity | 1008 Ports |
| Mounting Type | Ground mounting |
| Material | Cold rolled steel |
| Dimension (H*W*D) | 1600*720*600mm |
| Endurance Life | More than 1000 times |
| Working Environment | Indoor |
| Working Temperature | -5~40℃ |
| Relative Tumidity | ≤85%(At 30℃) |
| Air Pressure | 70~106Kpa |
| Insertion Loss | ≤0.2 dB |
| Return Loss | PC≥40 dB UPC≥50 dB APC≥60 dB |
| Insulation Resistance | >2*10⁴MΩ/500VDC |
| Proof Voltage | ≥3000VDC/1min No breakdown, no flashover |
| Color | Gray Pantone 413C |
Configuration
| Items | Parameter |
| Splice Sleeve | 1008 PCS |
| Worm Gear Pipe Clamp | φ16-25mm*20 PCS |
| Plastic Cable Tie(L*W) | 200*3mm*20 PCS |
| Fiber Protection Tube | 50m |
| Splice & Distribution Module | 84 PCS |

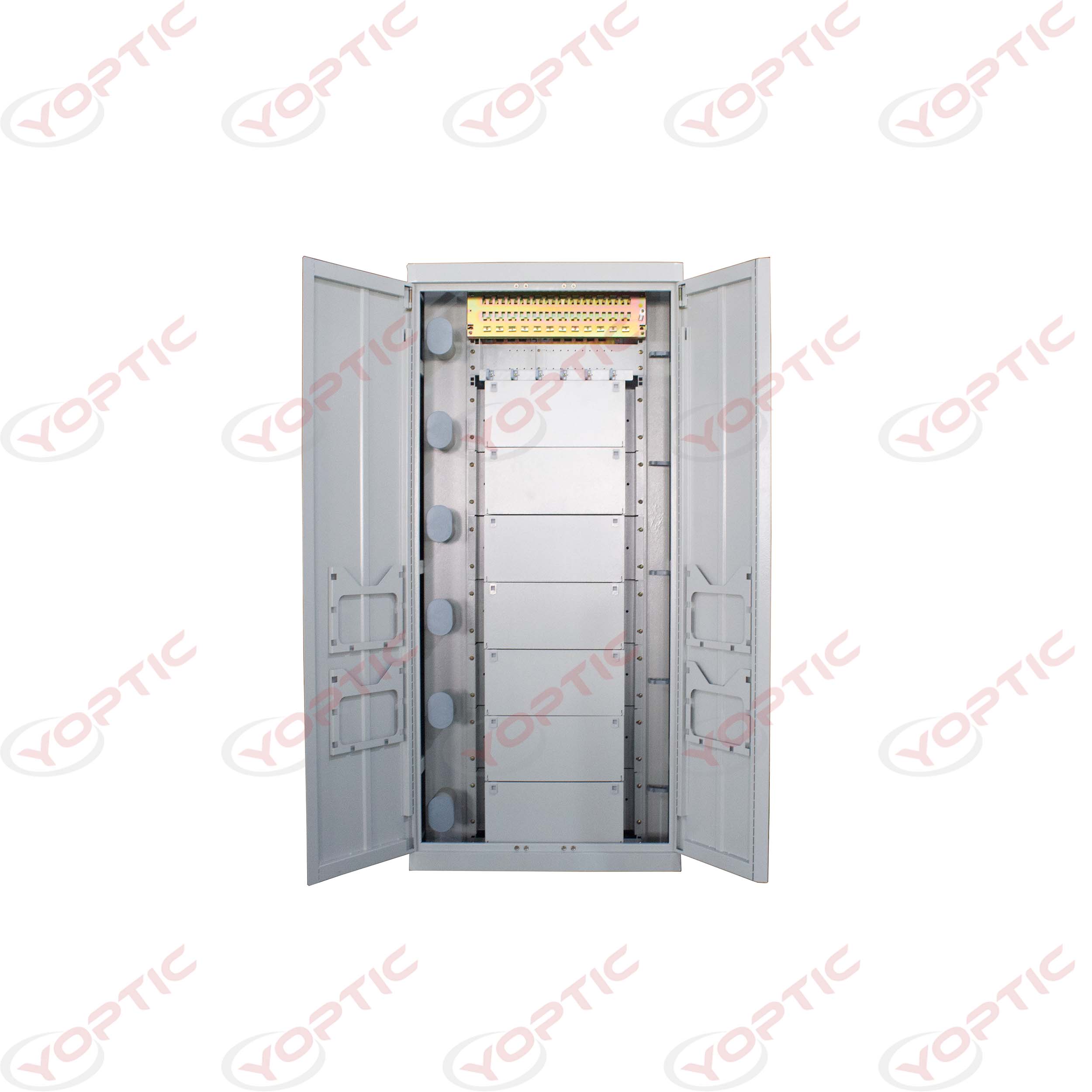

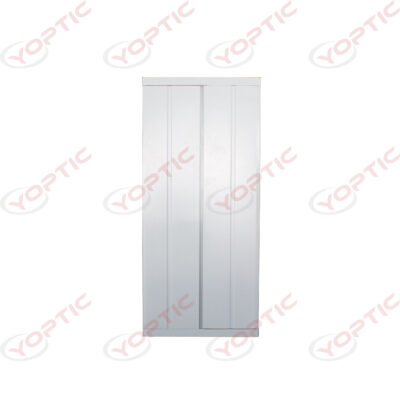

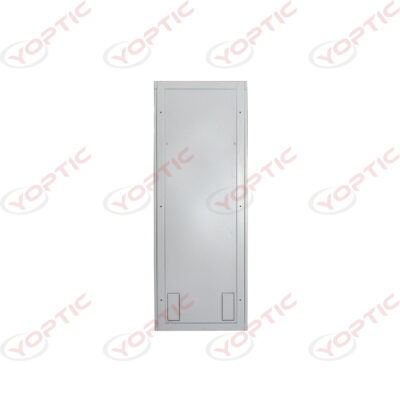

Other Perspectives
