YOTB-8A Optical Terminal Box
Overview
YOTB-8A Metal OTB, also known as Metal Optical Terminal Box, is made of cold-rolled steel. Used as a termination point for the feeder cable to connect with the drop cable in the FTTX communication network system. Fiber splicing, splitting and distribution can be done in this box, and at the same time, it provides solid protection and management for the FTTX network building.
Specifications
| Items | Parameter |
| Maximum Fiber Capacity | 8 Ports |
| Mounting Type | Wall mounting |
| Material | Metal |
| Dimension | 280*130*40mm |
| Working Environment | Outdoor and indoor |
| Working Temperature | -25~+40℃ |
| Relative Humidity | ≤85% (At +30℃) |
| Air Pressure | 70~106Kpa |
| Insulation Resistance | >2*10⁴MΩ/500VDC |
| Proof Voltag | 15kvDC/1min No breakdown, no flashover |
| Color | Black |
Configuration
| Items | Parameter |
| Splice Sleeve | 8 PCS |
| Splice Tray | 1 PCS |
| Adapter | FC/SC/LC |
| Pigtail | Optional |
Applications
· Wall mounting
· FTTH pre-installation and filed installation
· Telecommunication network
· Data communications network
· Local area networks

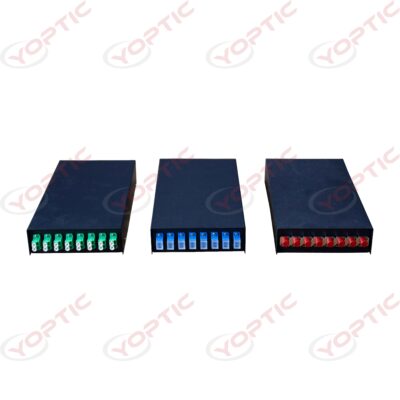

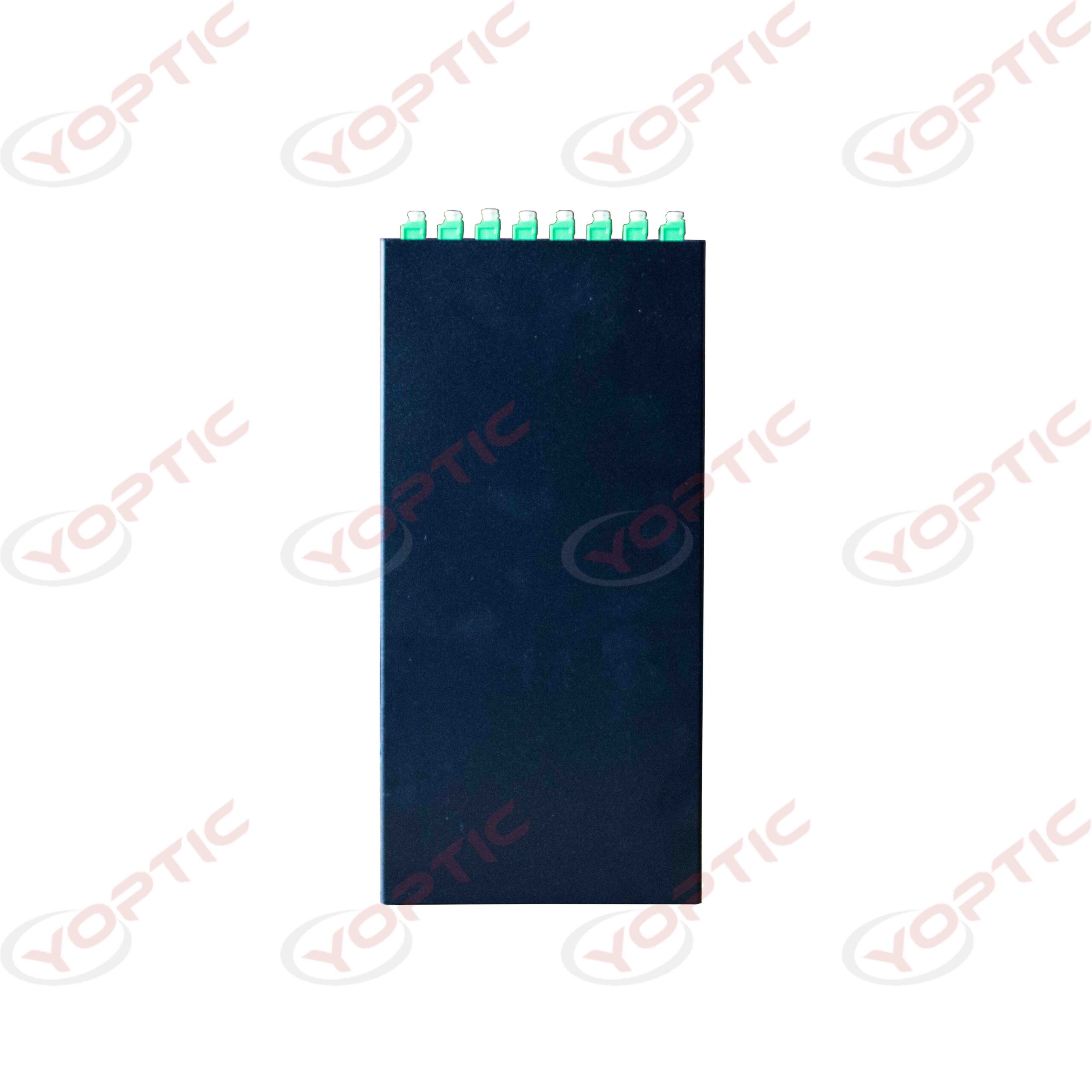

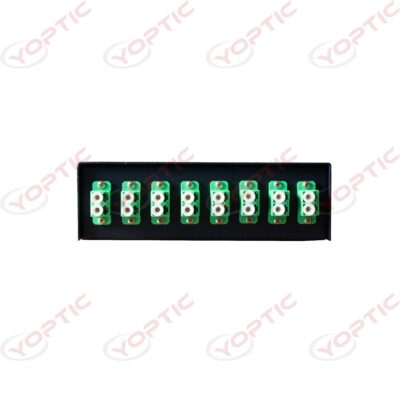

Other Perspectives
